Expanding Audio Over IP Capabilities with Modular Hardware Architecture

The broadcast, live sound, and commercial AV industries are undergoing a fundamental shift from point-to-point analog and digital audio connections to IP-based network infrastructures. As Audio over IP (AoIP) adoption accelerates, system designers and operators face a critical question: how to build networks that are not only functional today but also adaptable to tomorrow’s standards. Modular hardware has emerged as a strategic answer to this challenge, offering a flexible foundation that scales with demand and evolves with technology. Unlike monolithic, fixed-function devices, modular AoIP systems allow organizations to mix, match, upgrade, and replace components without disrupting the entire workflow.

This approach is particularly relevant as AoIP protocols such as Dante, AES67, ST 2110, and Ravenna continue to mature and compete. Modular hardware provides a future-proof path by enabling network endpoints and processing nodes to support multiple protocols within a single chassis. In this article, we explore the technical and operational advantages of modular hardware in AoIP networks, including scalability, cost-efficiency, maintenance simplicity, and the ability to handle increasingly complex audio routing, processing, and redundancy requirements.

What Is Modular Hardware in the Context of Audio Over IP?

Modular hardware in AoIP refers to audio equipment built around a chassis or card frame that accepts interchangeable modules, blades, or cards. Each module performs a specific function: analog or digital audio I/O, DSP processing, network interface, format conversion, or synchronization. The chassis provides power, cooling, management, and a common data backplane, while modules are hot-swappable and field-upgradeable.

This contrasts with fixed-configuration devices such as a standard 4-channel Dante encoder/decoder box or a standalone digital mixing console with a fixed I/O complement. With modular systems, users can start small with a chassis populated with a few modules and gradually add capacity or new features as needs change. Examples of modular AoIP hardware include:

  • Network I/O frames: e.g., Focusrite RedNet D64R, Yamaha RIO3224-D2, or DiGiCo D-Rack.
  • Modular DSP engines: e.g., Symetrix Prism, BSS Soundweb London BLU series, or QSC Q-SYS Core processors that accept I/O cards.
  • Format converter chassis: e.g., Ward-Beck Intergrid or Axia Pathfinder routers with blade-based ports.

The modular design philosophy aligns perfectly with AoIP's inherent flexibility. Because IP networks can carry hundreds of discrete audio channels over a single cable, the bottleneck often shifts to the physical I/O and processing endpoints. Modular hardware addresses this by allowing those endpoints to be reconfigured and expanded without replacing cabling or central network switches.

Key Benefits of Modular Hardware in AoIP Systems

1. Scalability from Small to Enterprise-Level Networks

One of the most compelling advantages of modular AoIP hardware is the ability to scale incrementally. A small broadcast studio may start with a single 8-module chassis containing two analog input cards, two analog output cards, and a network interface. As the station adds control rooms, remote studios, or streaming capabilities, additional modules or chassis can be integrated without redesigning the core network architecture.

This granular scalability is especially valuable in large-scale installations such as convention centers, sports venues, or corporate campuses where audio requirements may grow unpredictably. Modular frames often support several dozen I/O slots, meaning a single chassis can handle 256 channels or more. When that capacity is exhausted, the same management platform can control multiple chassis across a network, creating a unified system that appears as a single logical device.

Furthermore, scalability extends to processing power. DSP modules can be added to handle advanced functions like acoustic echo cancellation, automatic mixing, loudness control, or complex routing matrices. This avoids the need to purchase an entirely new processor when a single algorithm is required.

2. Cost-Effectiveness and Budget Flexibility

Modular hardware reduces total cost of ownership (TCO) in several ways. First, the initial capital investment can be lower because organizations pay only for the modules they need at deployment. Second, when technology evolves – for example, when a new AoIP protocol version is released or higher channel counts become standard – users can replace only the affected modules rather than the entire chassis.

Third, maintenance costs are lower because a faulty module can be swapped in minutes without sending the whole unit to a service center. Many manufacturers offer module-level warranties and advanced replacement programs, further reducing downtime expenses. Fourth, modular systems retain value better; a used chassis can be repurposed with different modules for another facility, whereas a fixed-function device often becomes obsolete as a whole.

Case in point: A television network upgrading from ST 2110-30 (AES67-based) to support ST 2110-31 (AES3 transport) simply replaced the network interface cards in their existing modular I/O frames, saving an estimated 60% compared to replacing all edge devices.

3. Flexibility in Protocol and Format Support

The AoIP landscape is not monolithic. Dante dominates installed sound, AES67 is mandated for many broadcast interoperability applications, and SMPTE ST 2110 is the ultra-low-latency standard for broadcast production. Ravenna and AVB are also present in niche and high-performance installations. Modular hardware allows a single chassis to support multiple protocols through swappable network interface modules. This is critical for venues that need to bridge different AoIP domains, such as a performing arts center with a Dante-based stage rack and an ST 2110 control room.

Beyond network protocols, modular I/O cards enable support for diverse analog and digital formats: balanced analog, AES3, ADAT, MADI, SDI embedding, USB, and more. This versatility simplifies integration with legacy equipment without requiring adapter boxes or external format converters. For system designers, this means fewer device types to specify, stock spares for, and train staff on.

4. Simplified Maintenance and Reduced Downtime

In critical audio applications like live broadcast or concert production, every moment of audio loss is costly. Modular hardware's hot-swap capability allows a technician to replace a failed I/O card or power supply while the rest of the system continues operating. Many chassis offer dual redundant power supplies and fan modules, further enhancing reliability.

Diagnostics are also improved. Intelligent modular frames provide module-level status indicators, logging, and remote monitoring via SNMP or web interfaces. When an issue is detected, the system can identify the exact slot and module type, accelerating troubleshooting. In contrast, repairing a fixed device often requires lifting the chassis out of the rack, opening it, and verifying internal connections – a process that can take hours.

Additionally, firmware updates can be applied per module, reducing the risk of a full-system downtime during upgrades. Some modular platforms even support "hitless" firmware upgrades for redundant modules, ensuring that the audio path remains uninterrupted.

5. Future-Proofing Against Technological Change

The pace of innovation in AoIP is rapid. Ethernet speeds have moved from 100 Mbps to 1 Gbps, 10 Gbps, and now 25/100 Gbps for high-performance broadcast plants. Codecs have evolved from uncompressed LPCM to FLAC, Opus, and LC3plus. Network synchronization has shifted from PTPv1 to PTPv2 with enhanced profiles. Modular hardware addresses this by allowing network interface modules to be upgraded to support higher speeds or newer synchronization standards.

For example, early Dante devices often used 100 Mbps Ethernet. Today, Dante supports 1 Gbps and even 2.5 Gbps for large channel counts. A modular Dante I/O frame from 2015 can be updated with a modern network card to run at gigabit speeds and support the latest Dante Domain Manager and AES67 compatibility, without replacing the analog I/O cards or chassis.

Similarly, the shift from AES67 to ST 2110 requires support for RTP, FEC, and NMOS control. Some modular platforms offer software- or firmware-defined interfaces that can be reconfigured between protocols through a simple card swap or configuration change, ensuring that investments made today remain viable as standards evolve.

Real-World Applications of Modular AoIP Hardware

Broadcast Studios and Production Facilities

Broadcasters are among the heaviest users of modular AoIP. Large networks like ESPN, BBC, and NBC Sports rely on modular I/O frames and routing systems to handle hundreds of signals from remote trucks, edit suites, and transmission paths. Modularity enables them to reconfigure studio configurations in minutes for different shows – switching from a talk show setup to a news set by loading a different routing preset and swapping a few I/O cards if needed.

Furthermore, as broadcasters transition from SDI to IP (ST 2110), modular hardware allows a phased migration. A station can deploy a modular IP core initially supporting a few channels, then add jackets and processing blades as more equipment moves to IP, all while maintaining legacy MADI and AES3 connectivity through specially designed card options.

Live Event and Touring Sound

In the high-pressure environment of live concerts and festivals, modular designs offer both redundancy and rapid reconfiguration. A front-of-house (FOH) engineer may use a modular DSP core with customizable I/O cards to handle changing stage configurations each day of a tour. The ability to add a 8-channel analog input card for a guest band's backline, or swap a Dante card for an AVB card to match an in-house system, is invaluable.

Furthermore, touring companies often fly modular chassis in road cases. If a module fails on tour, the crew can replace it from the spare stock in minutes, rather than losing a whole soundcraft console or stagebox. This reliability is why modular I/O systems from manufacturers like DiGiCo, Yamaha, and Avid are staples on major tours.

Education, Corporate, and Government Installations

Educational institutions typically have long planning cycles and tight budgets. Modular hardware allows them to install a basic system now and expand years later without excessive cost. For example, a university lecture hall may start with a 16×16 analog I/O modular frame and a single ST 2110 network interface. As they add more lecture rooms and a centralized AV-over-IP backbone, they can purchase additional digital I/O cards and network modules to create a distributed audio network.

Corporate boardrooms and government facilities also benefit from modularity because security requirements change. A modular chassis can be delivered with physical disconnection, encryption modules, or air-gapped network interfaces, ensuring compliance without replacing all edge devices.

Implementation Considerations for Modular AoIP Systems

While modular hardware offers many benefits, successful deployment requires careful planning. Here are key factors to evaluate:

Chassis Backplane Bandwidth

Not all modular frames provide enough internal bandwidth to support today's channel counts and sample rates. Ensure the chassis backplane can handle at least 1 Gbps of aggregate throughput, and preferably 10 Gbps or more for high-channel-count systems. For AES67 or ST 2110, look for support for 1024×1024 or larger routing matrices within a single frame.

Power and Cooling Requirements

Modular chassis densely packed with fast network interfaces and DSP modules generate significant heat. Plan for adequate rack ventilation and consider modules with low-power designs. Redundant, hot-swappable power supplies are strongly recommended for any critical application.

Management and Control

Choose a platform with a unified API and web-based or serial control interface that can manage all modules from a single pane of glass. The ability to save, recall, and restore module configurations is essential for fast system recovery.

Manufacturer Ecosystem and Support

Modular AoIP hardware is a long-term investment. Select manufacturers with a proven track record of backward compatibility and module longevity. Check the availability of spares and support contracts. Ideally, the same chassis family should have been in production for at least three to five years to ensure module availability.

Comparing Modular and Fixed-Configuration AoIP Solutions

Fixed-configuration devices (e.g., a 32×32 Dante box with no expansion) have their place in simple, static installations. They are typically more compact, lower in initial cost, and easier to install for a specific purpose. However, they lack the adaptability required for growing or evolving systems.

The table below summarizes the key differences:

  • Scalability: Modular – scalable by adding modules; Fixed – fixed capacity, requires new device to expand.
  • Upgradability: Modular – swap modules for new protocols/processing; Fixed – entire device must be replaced.
  • Redundancy: Modular – can have redundant power, cooling, and I/O slots; Fixed – often requires secondary device.
  • Initial cost: Modular – higher chassis cost but incremental module costs; Fixed – lower initial but higher TCO over time.
  • Mean time to repair: Modular – minutes (module swap); Fixed – hours or days (board-level repair).

For any installation where future growth, protocol changes, or I/O configuration changes are anticipated, modular hardware delivers a superior return on investment.

The symbiotic evolution of modular hardware and AoIP is set to continue. Several trends are shaping the next generation of products:

  • Software-Defined I/O: Rather than swapping physical cards, future modular frames may use software licensing to activate additional channels or protocol stacks on general-purpose processing modules. This further reduces hardware costs while maintaining hardware-based determinism.
  • Higher Network Speeds: With the adoption of 25 GbE and 100 GbE in broadcast studios, modular network interface cards will need to support these speeds while maintaining sub-millisecond latency. Several manufacturers are developing next-gen cards using FPGA-based transceivers.
  • NMOS Integration: The AMWA NMOS specifications enable control of IP audio nodes in large broadcast networks. Modular chassis are now beginning to include NMOS registration APIs, allowing each I/O card to be discovered and controlled as an individual logical endpoint.
  • Edge Processing with AI: DSP modules are being augmented with machine learning accelerators for real-time tasks like acoustic echo cancellation, noise suppression, and automatic speech recognition. Modular hardware will allow these specialized processing modules to be added to existing AoIP networks without a forklift upgrade.

Conclusion

Modular hardware is not merely an alternative to fixed-configuration AoIP devices; it is a strategic enabler for audio network scalability, resilience, and future-readiness. By decoupling the chassis infrastructure from the I/O, processing, and network interface blades, organizations can purchase only what they need today and adapt seamlessly to tomorrow's requirements. The benefits documented in this article – from incremental cost savings to hot-swappable maintenance and protocol flexibility – make modular AoIP a compelling choice for broadcasters, live sound engineers, and systems integrators alike.

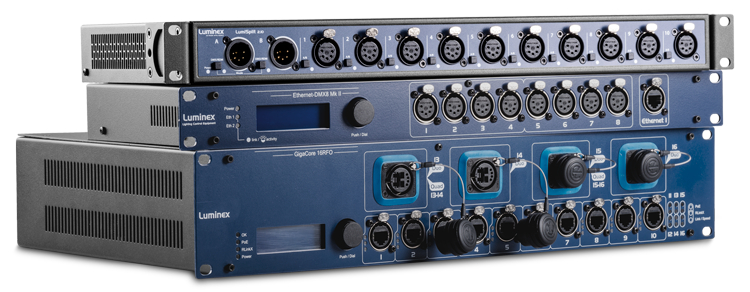

As the industry moves toward deeper IP convergence, the modular approach will likely become the default architecture for any serious AoIP installation. The ability to swap a card instead of a system, and to grow channels without redesigning the network, transforms AoIP from a mere transport system into a truly flexible, adaptive audio infrastructure. To explore specific product offerings, resources such as the Audinate Dante modular ecosystem, the SMPTE ST 2110 standards, and case studies from Wheatstone and Luminex provide deeper insight into current implementations.

For system designers facing budget scrutiny, tight space constraints, and the relentless pressure of technological change, modular hardware delivers a practical, proven path forward. It is an investment in adaptability that pays dividends over the entire lifecycle of the audio system.
